[Applications]
  This fumace is supported for each kind of material drying equipment as a kind of general hot air unit, which is widely used for dehumidification of cereal, seed,feed and fruit, heating and wer extraction of vegetables, mushroom, Jew's-ear, tea, tobacco, food, pharmaceutical products, chemical raw materials and light and weight industrial products, as well as for heating of various facilities and dehumidification of warehouses.

[Working Principle]
  Combining burning and heat exchange as a whole, this furnace adopts the novel indirect  heating technology of performing heat exchange at high ternperature position of the furnace, inside which, smode and air flow separately, heating has no contamination, thermal efficient reaches 60-75%, therefore, it features speedy temperature rise,comact dimension. convenient installation, reIiabIe operation and Iower cost(only half of that by boiler heating system

[Technical parameters]

	Heat cutput（x104Kcal/h）	Aer output（m3/h）	Temperatrue（°C）	Coal consume（kg/h）	Model of fan for smoke	size

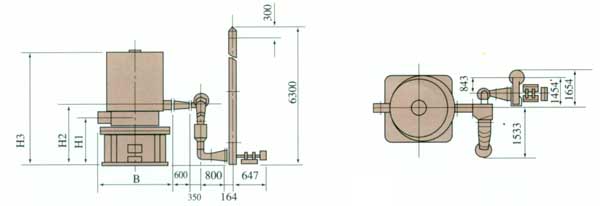

						H1	H2	H3	B
JRF4-2.5	2.5-3	1500-560	60-200	10-12	炊事用鼓風機80-100W			2000	800
JRF4-4	4-5	3500-930	60-200	14-17	炊事用鼓風機200-300W			2340	820
JRF5-8	6-8	5600-1480	60-200	18-24	Y5-47 2.8C
JRF5-15	10-15	12000-2160	60-300	30-45	Y5-47 4C 2000r.pm 1.5kw	1575	2050	3400	1965
JRF5-30	25-30	25000-4330	60-300	70-85	Y5-47 4C 2520r.pm 2.2kw	1660	2200	4200	2495
JRF5-60	55-60	45000-8660	60-300	150-175	Y-47 4C 2900r.p.m 3kw	1700	2260	4800	3860
JRF6-100	80-100	84000-1400	60-300	220-290
JRF6-160	150-160	134400-23000	60-300	410-460	Y-9-26 9D左45°C 1450r.p.m 18.5kw	2412	4100	7100	4000

note:

1. The outout temperature means the raised ternperature from 20'C of input temperature.
2. lf the output temperature is high than 300'C. the inner wall of furnace is made of raw
materials, such as stainless and so on that can withstand high temperature. The price should be kiscussed face to face.
3. The fuel value of coal is calculated based on 5500kcal/kg
